Economy Manual Sanitary 3 Piece Ball Valve - Weld Ends

Details

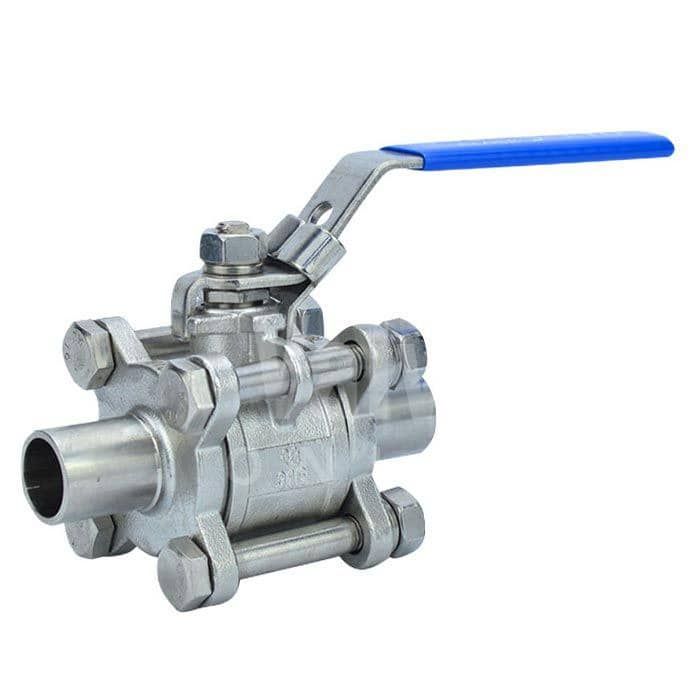

Economy Manual Sanitary Ball Valve with Weld OD End Connections

This manual 3 piece sanitary ball valve features Weld OD end connections and is offered with Virgin PTFE seals and Cavity filled seats which are FDA 21 CFR 177.1550 compliant and certified.

Certified as being non Bovine and TSE (Transmissible Spongiform Encephalopathy) Free for all manufacturing and packaging processes. Suitable for use on sanitary applications including pigged pipework.

Key Features:

• No Dead Space in Through Path
• Weld OD End Connections
• Stainless Steel 316 CF3M Body
• Cavity Filled Seats
• Sizes: 1/2" to 3" O/D
• Temperature Rated: -20°C to +180°C
• Pressure Rated: 400 psi/g
• CE marked in accordance with PED 2014/68/EU
• Inspection & Testing: API 598 / EN 12266 1
• End connections: BS 4825 1.6mm Wall Thickness

Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.

Datasheet:

 Economy Manual Sanitary 3 Piece Ball Valve - Weld Ends Datasheet
