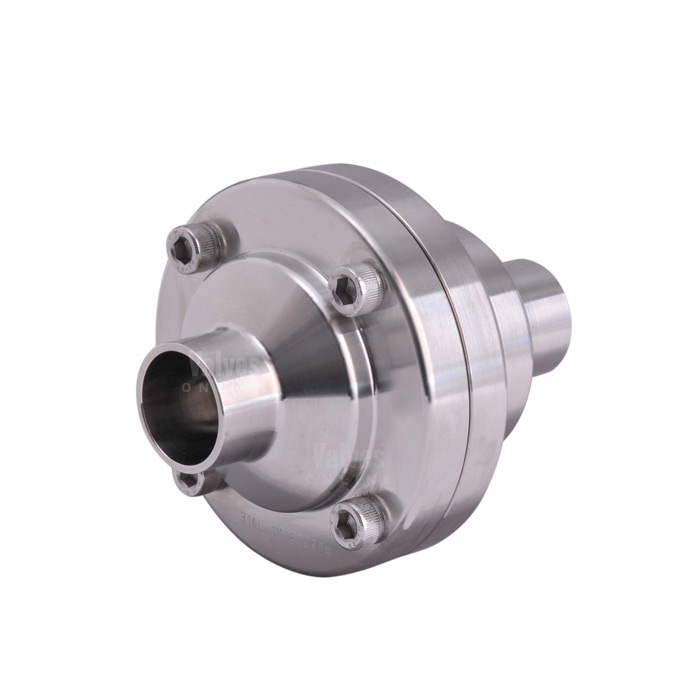

Hygienic Check Valve

Hygienic Check Valve

SKU
HC4257

in-stock Available to Order

Key Features
Hygienic Check Valve in sizes: 1" to 4" with 316 Stainless Steel body, piston, spring, EPDM seal and OD weld ends. Suitable for use in food processing, process and hygienic, sanitary applications.

Related Products

Hygienic Pressure Relief Valve
Hygienic Pressure Relief Valve
£457.40
View Product
Hygienic Diaphragm Valve
Hygienic Diaphragm Valve
£175.56
View Product

Details

Hygienic Check Valve

Hygienic Check Valve in sizes: 1" to 4" with 316 Stainless Steel body, piston, spring, EPDM seal and OD weld ends. Suitable for use in food processing, process and hygienic, sanitary applications; offering high flow rates in one direction only, preventing back flow.

Key features:

  • Available in sizes: 1" to 4" OD weld ends.
  • Maximum pressure: 150 PSI / 10 Bar.
  • Internal finish to 0.4 micron.

    • Joint seals in our hygienic valves are free from dead zones, removing the risk of bacteria and debris build up.

    Alternative end connections available upon request (POA).

    Covers the following IDs: 102000, 102001, 102002, 102003, 102004, 102005.

    Download our technical PDF datasheet here

    Technical Attributes

    End Connection OD Weld End
    Design / Type Hygienic Check
    Industry / Approvals Hygienic
    Body Material Stainless Steel, Stainless Steel 316
    Size 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
    Manufacturer VOLT
    Main Features
    • 1" to 4"
    • 316 Stainless Steel
    • OD Weld Ends
